Description

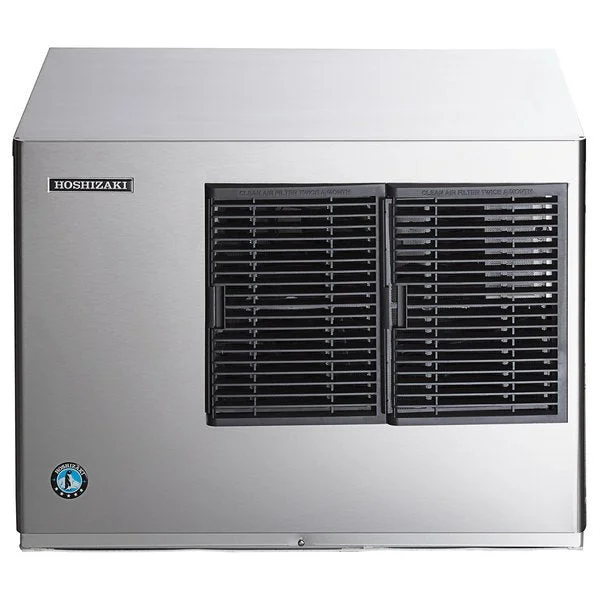

The KML-325MAJ is an air-cooled Crescent Cuber Icemaker with dimensions of 30″ W x 27-3/8″ D x 22″ H. This ice machine can produce up to 380 lbs of ice per day and is designed to accommodate mounting two units side-by-side for doubling ice production capacity. It creates crescent-shaped ice cubes and features a durable stainless steel exterior. The KML-325MAJ is compatible with various bins and dispensers, which are sold separately, such as B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, and DM-200B.
The unit includes advanced features like the EverCheck™ alert system and the CycleSaver™ design to optimize its performance. It’s protected by the H-GUARD Plus Antimicrobial Agent, ensuring ice sanitation. The KML-325MAJ uses R-404A refrigerant for efficient cooling. The specific heat rejection rate in BTU/hr is not provided. It is suitable for operating within an ambient temperature range of 45 – 100°F, water temperature range of 45 – 90°F, and water pressure between 10 – 113psig. The ice machine operates on a voltage range of 104 – 127V and draws 8.4 amps with a 15 Amp Max fuse. The energy consumption is 5.72 kwh per 100 lbs of ice produced under 90/70 temperature conditions. It’s designed for single-phase operation (115v/60/1) with a 3-wire configuration, including ground. Please note that it must be hardwired at the installation site as it doesn’t include a cord/plug. If you need a quote, you can request one accordingly.
